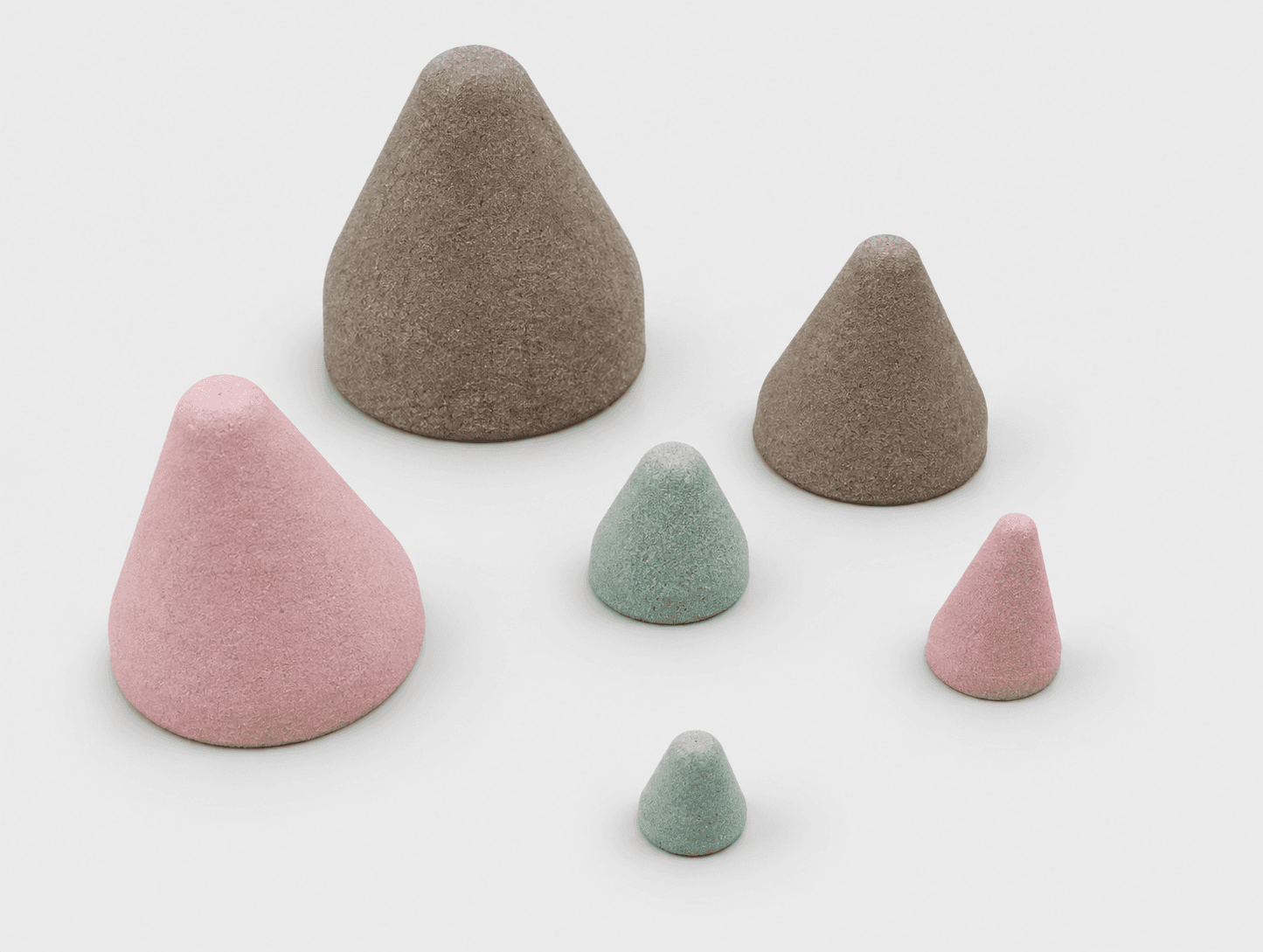

Round Top Cone
$3.25 / lb
Volume pricing is reflected in your quote.
A plastic media shape family with archived order codes.
Plastic and polyester media uses a resilient matrix. The archived catalog lists standard and heavyweight cutting formulations.
50 lb minimum, in 50 lb increments. $3.25 / lb; $162.50 estimated total.
Reference dimensions · 3/4 RTC
Catalog size below is listed separately. A/B/C on the supplier drawing identify its marked spans, not a universal width/length/depth order.
- Catalog dimension 1
- 3/4 in / 19.05 mm
- Catalog dimension 2
- 11/16 in / 17.46 mm
One catalog reference size. Reference drawings are not to scale; see the size table for all options. What do A, B, and C mean? View the measuring guide.
Dimensions
Catalog dimensions for this shape. A, B, and C follow the shape drawing in the printed catalog.
| Order as | A | B |
|---|---|---|
| 3/4 RTC | 3/4 in (19.1 mm) | 11/16 in (17.5 mm) |
| 9/16 RTC | 9/16 in (14.3 mm) | 1/2 in (12.7 mm) |
Attributes
- Category
- Plastic and Polyester Media
- Archived variants
- 5
- Current details
- Confirmed with Kevin on the quote
Variants
Add the exact row when you know it. If not, add the full product above and include your current code or dimensions in the request.
| Code | Variant | Dimensions | Notes | Quote |
|---|---|---|---|---|
| Mini RTC | Mini RTC | A: 3/8 in; B: 7/16 in | None listed | |
| 9/16 RTC | 9/16 RTC | A: 9/16 in; B: 1/2 in | None listed | |
| 3/4 RTC | 3/4 RTC | A: 3/4 in; B: 11/16 in | None listed | |
| 3/4 LRTC | 3/4 LRTC | A: 3/4 in; B: 1 in | None listed | |
| 1-7/8 RTC | 1-7/8 RTC | A: 1-7/8 in; B: 2-3/16 in | None listed |
Best for
- Deburring
- Surface removal
- RMS improvement
