When the finish is the spec. Stainless, figure-8 motion.
Made in South Korea. Stocked and supported in Los Angeles.
Best for dental, medical, aerospace, electronics, and defense manufacturing with strict quality requirements.
When the surface itself is the spec, the CV8-600 is the machine. Interchangeable stainless steel barrels, lined in natural rubber or replaceable polyurethane, support long-term use of low-pH compounds and ride a controlled figure-8 motion that drives an even, repeatable finish into every edge and bore. A stainless steel chassis and an integrated process timer mean the batch you run on Friday matches the one you ran on Monday.
Your requirements. Our custom build.

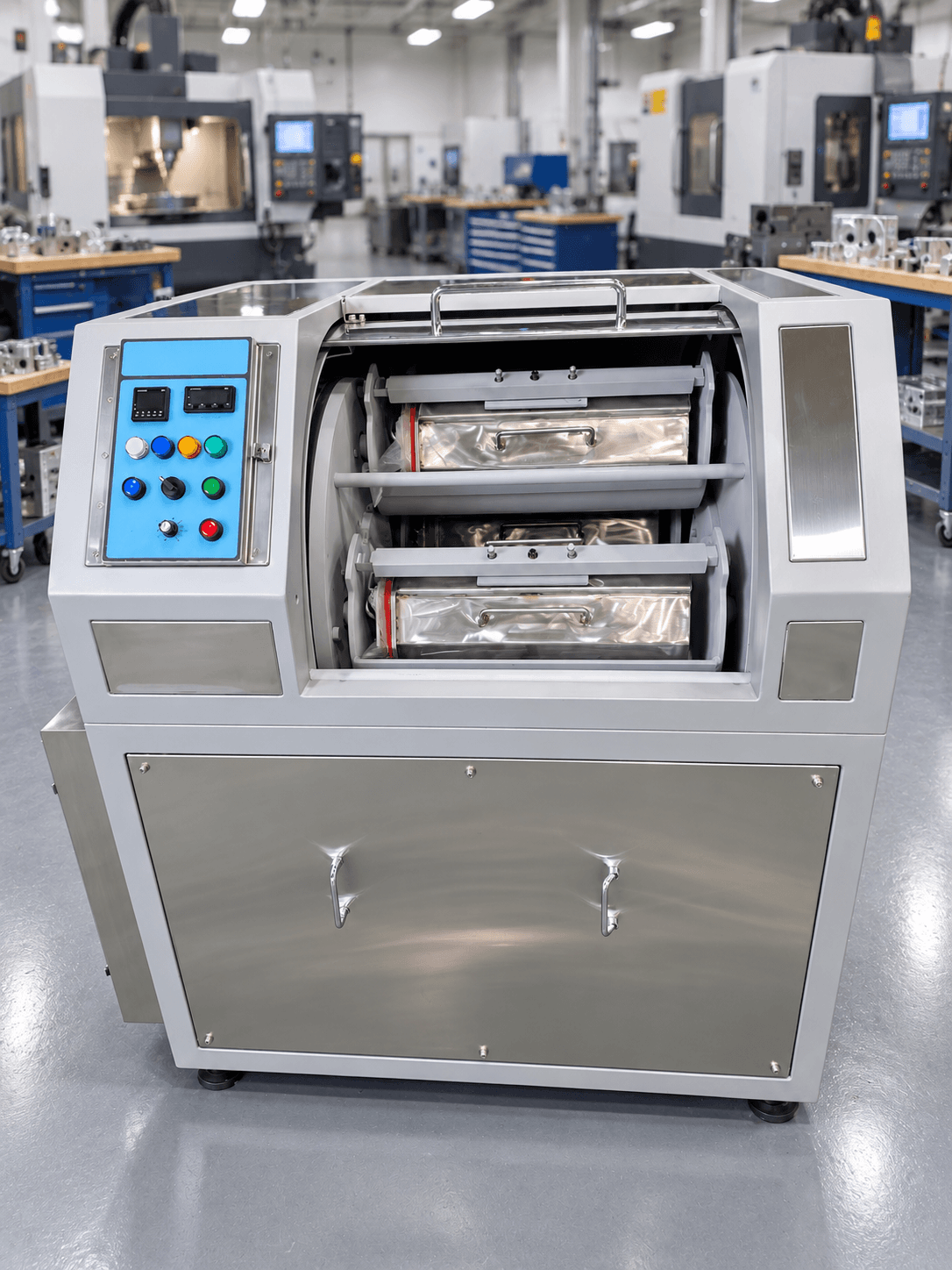

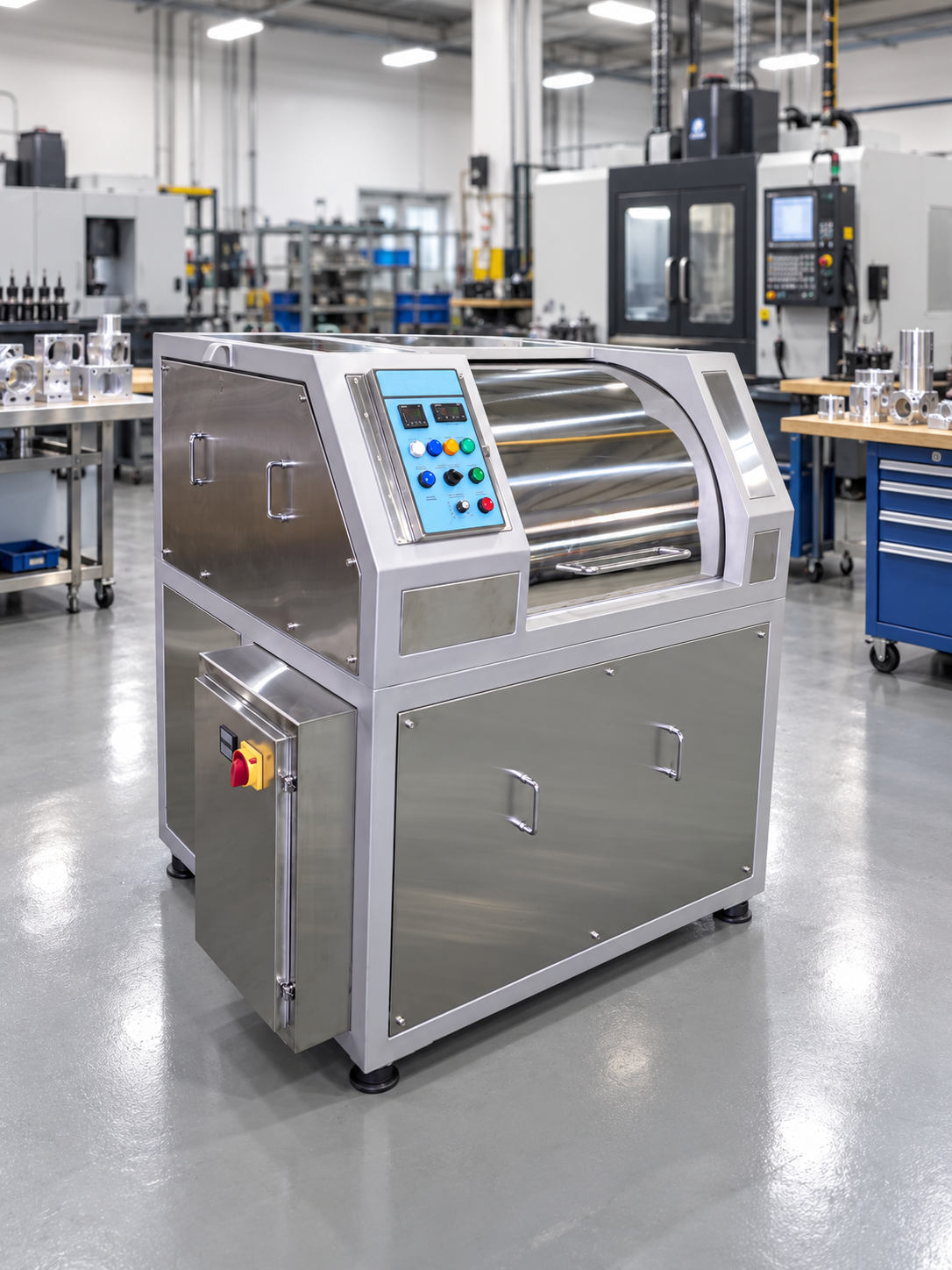

This custom stretched machine features 18-inch-long barrels—a build tailored to the customer’s needs.
Custom stretched configuration
A customer-specific machine layout built around custom barrel dimensions, rather than a standard configuration.
18-inch-long barrels

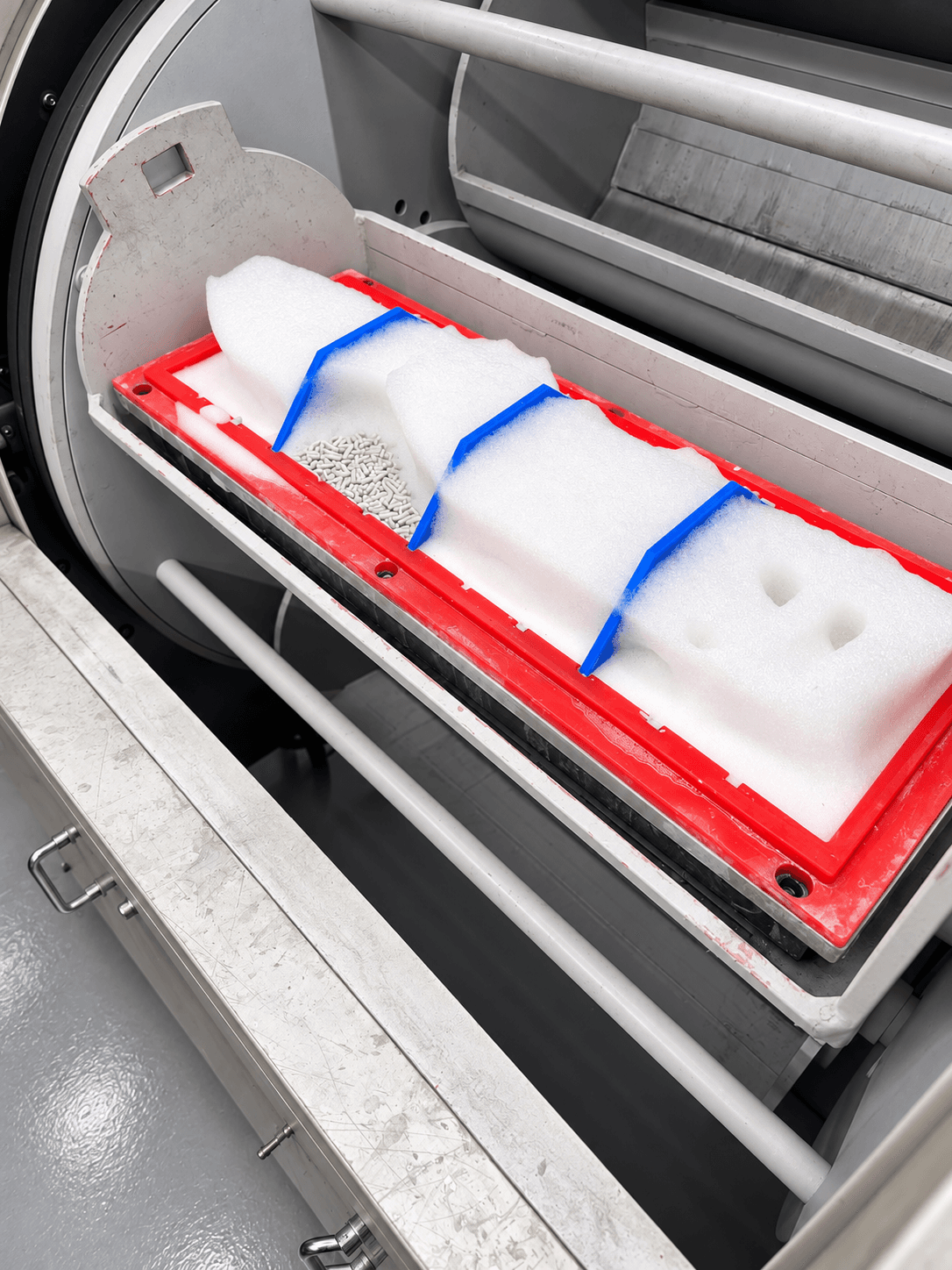

This build features custom 18-inch-long barrels. The close-up shows the barrel interior with its dividers and finishing media.
Built around your needs
Richwood can build to customer requirements. Share your part dimensions, finishing goals and available space with Kevin to discuss a custom solution.
Photos enhanced for presentation; aerospace job-shop backgrounds are illustrative.
Need a different barrel length or machine configuration? Let’s talk about what your parts and process require.
Discuss Your Custom Build →Custom build shown, not the standard CV8-600 configuration. Contact Richwood for custom dimensions, pricing and lead time.
RW-IND Standalone Separator
In stock · Contact Richwood to reserve.
Add for $12,500
Add the RW-IND standalone media separator to your CV8-600 finishing setup. Priced separately from the machine.
- Construction
- All stainless configuration
- Motor
- 220V
- Input power
- 110V
- Speed
- Adjustable variable speed
Includes three screen sizes for Small, Medium, and Large media.
Configure Your CV8-600 →
Stainless steel barrels. Built for demanding finishing.
Stainless steel barrels support the strict quality requirements of dental, medical, aerospace, electronics, and defense manufacturing. Their stainless steel construction allows long-term use of low-pH compounds.

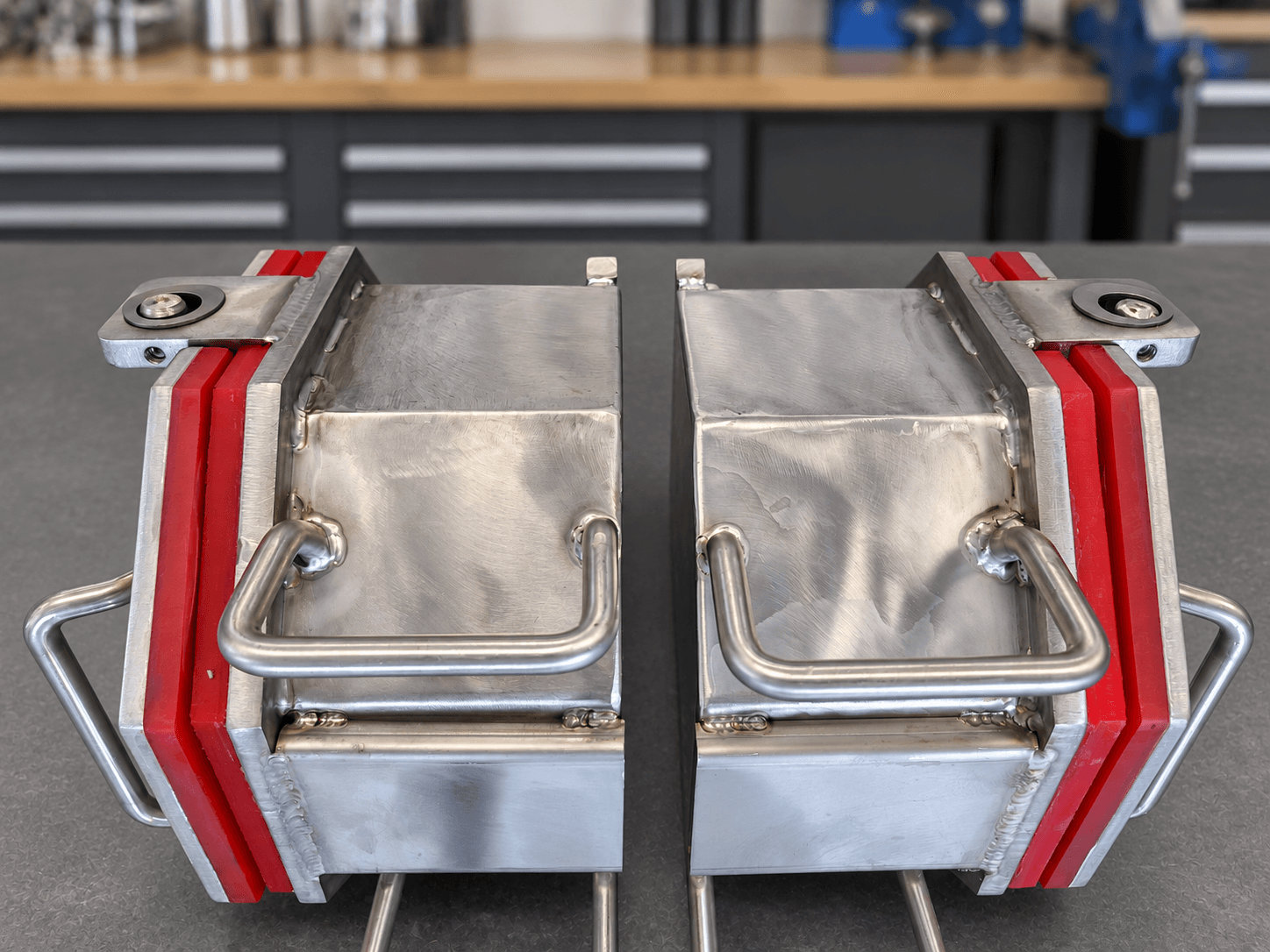

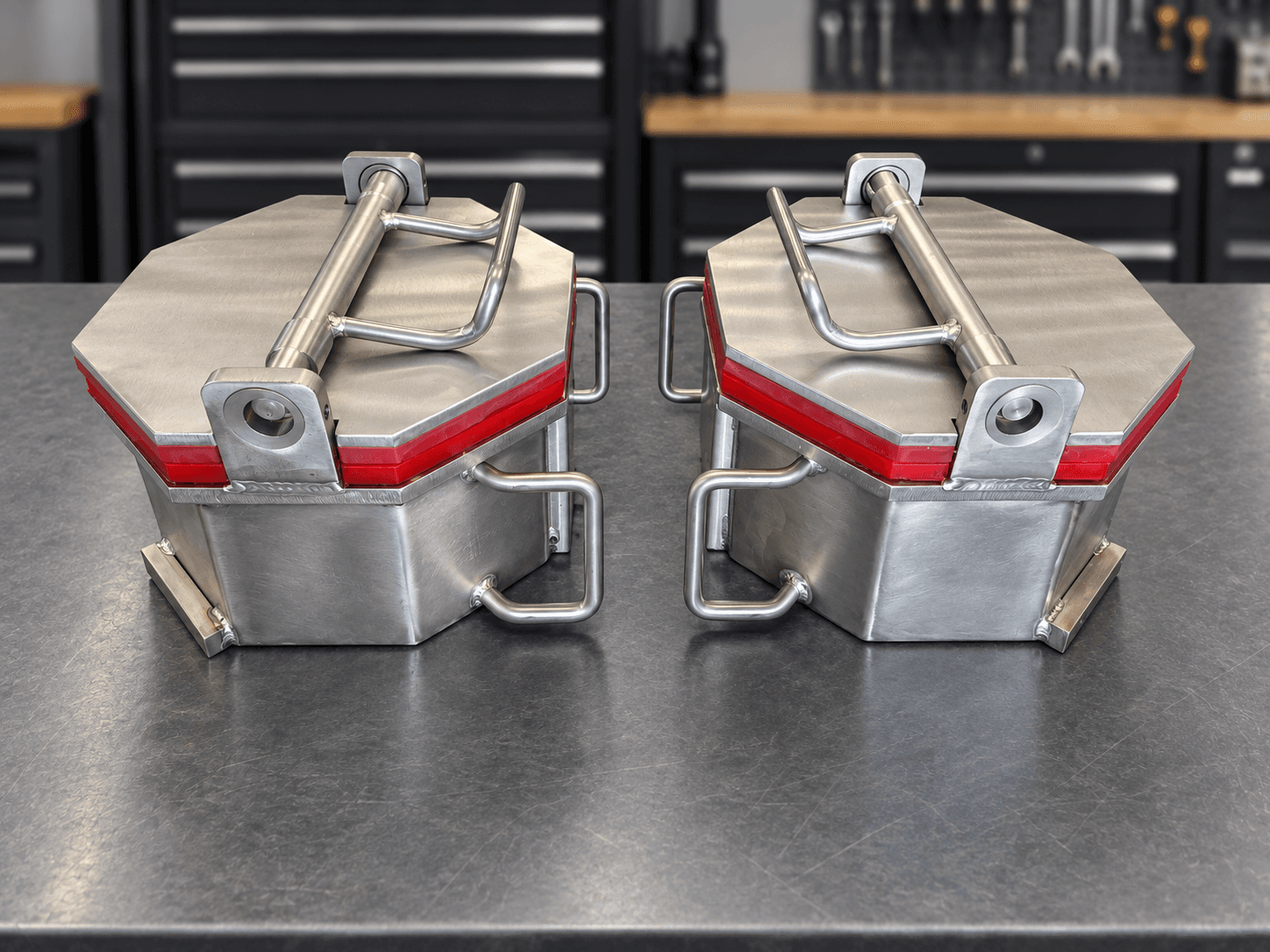

Customize your CV8-600 with 1/4 cu ft barrels, 1/8 cu ft barrels, or a mix of both sizes. You are not limited to an all-small or all-large barrel package.
Additional barrels: $500 each
Four 1/4 cu ft barrels and eight 1/8 cu ft barrels are example packages, not the only choices. Tell us your preferred mix when requesting a quote.
Configure Your CV8-600 →

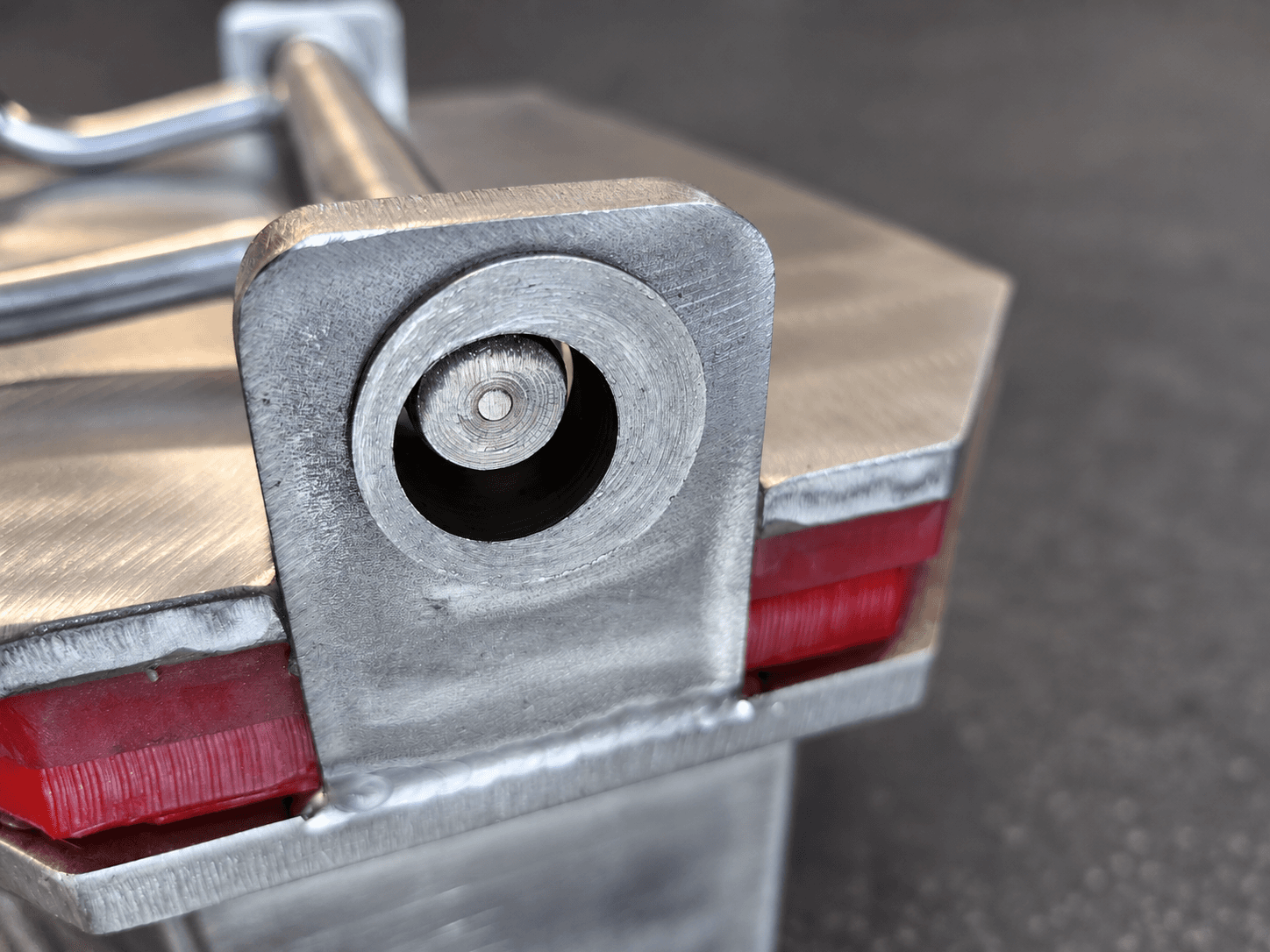

Replaceable, adjustable eccentric collars
The CV8-600 eccentric collar system lets the operator control lid-to-barrel sealing pressure. Adjust the collars by loosening and tightening the two set screws on each side of the collars.

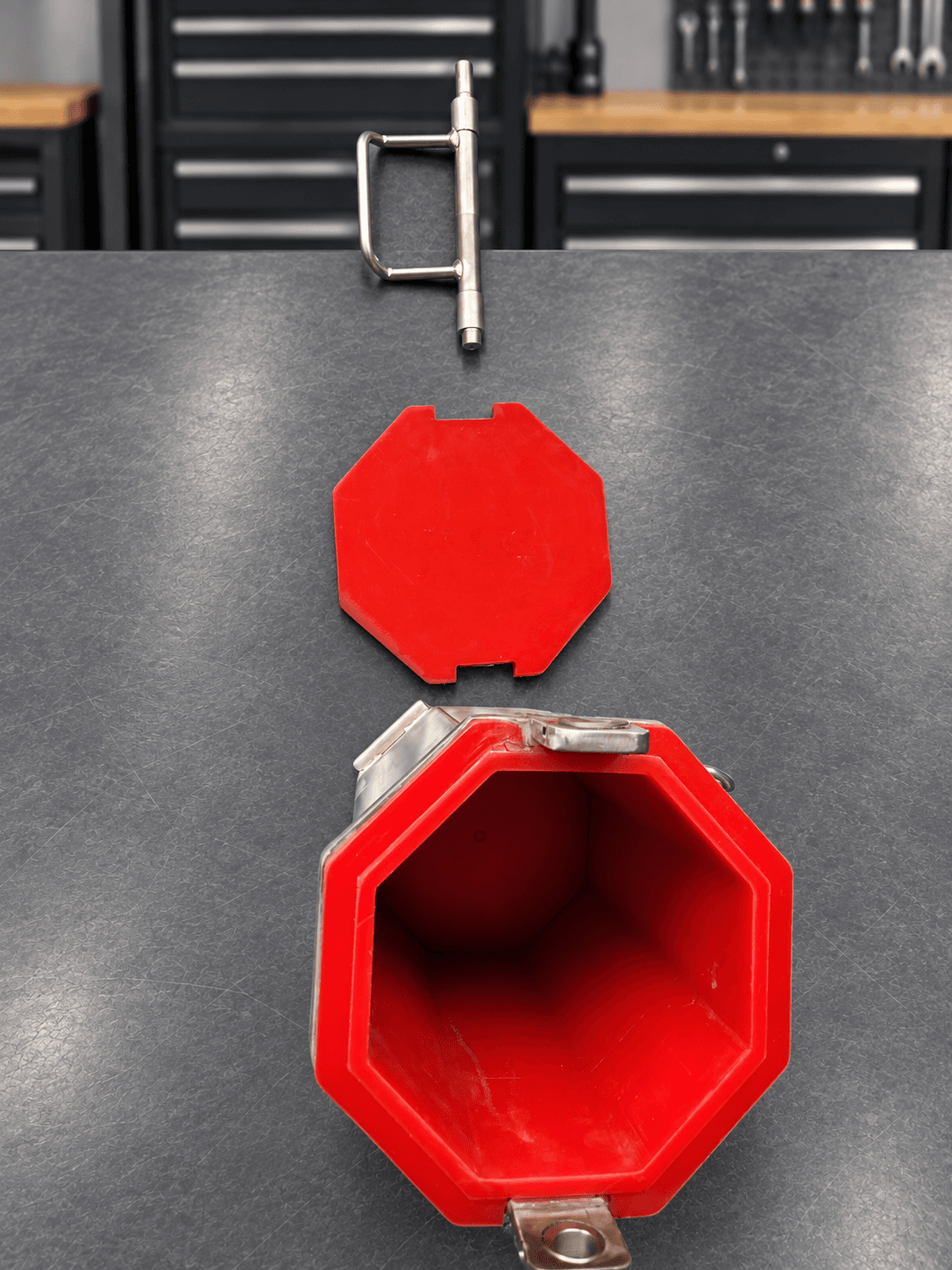

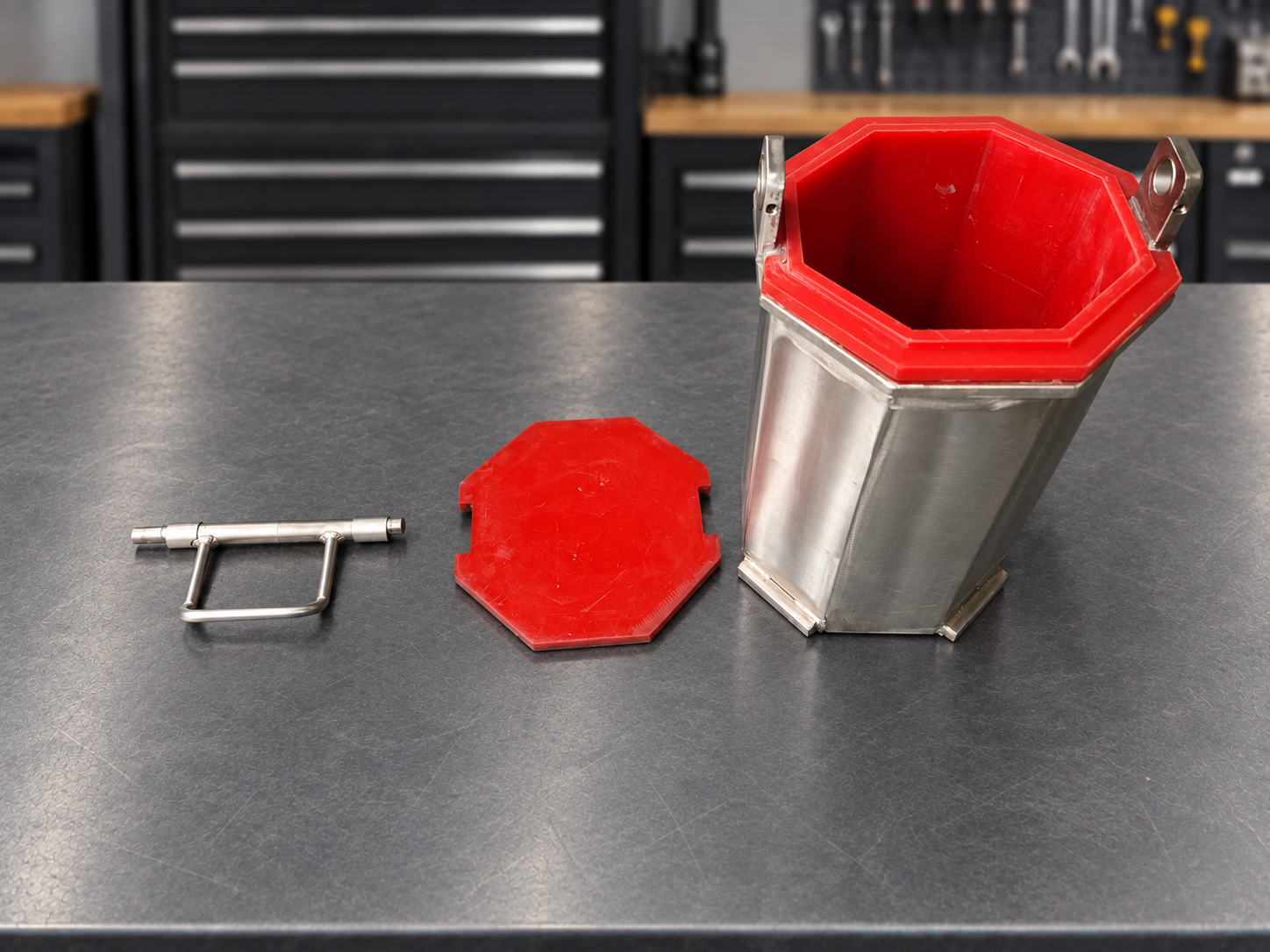

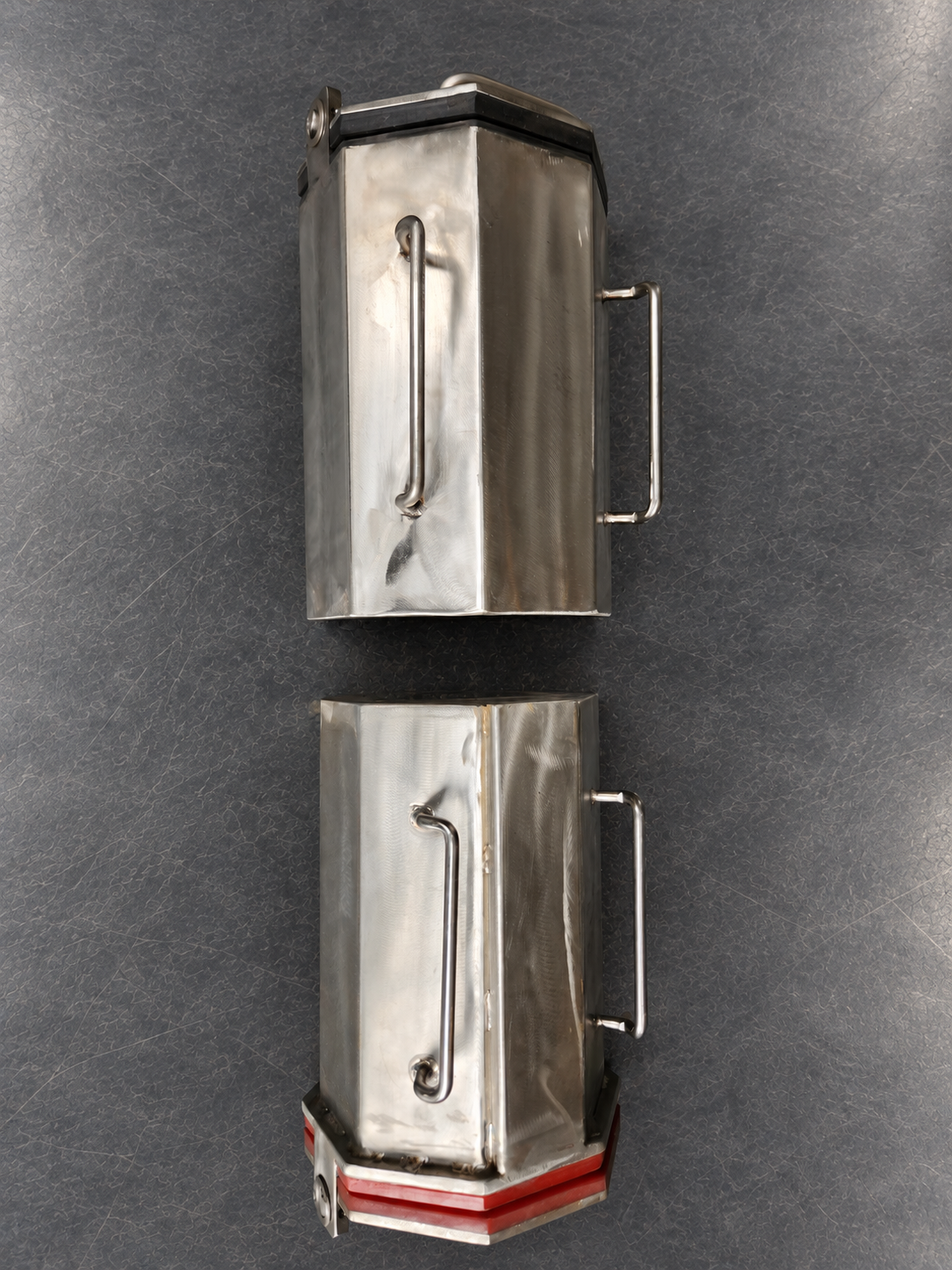

1/4 cu ft barrels. Two lining options.
The CV8-600 offers 1/4 cu ft barrels with rubber lining or replaceable polyurethane lining.

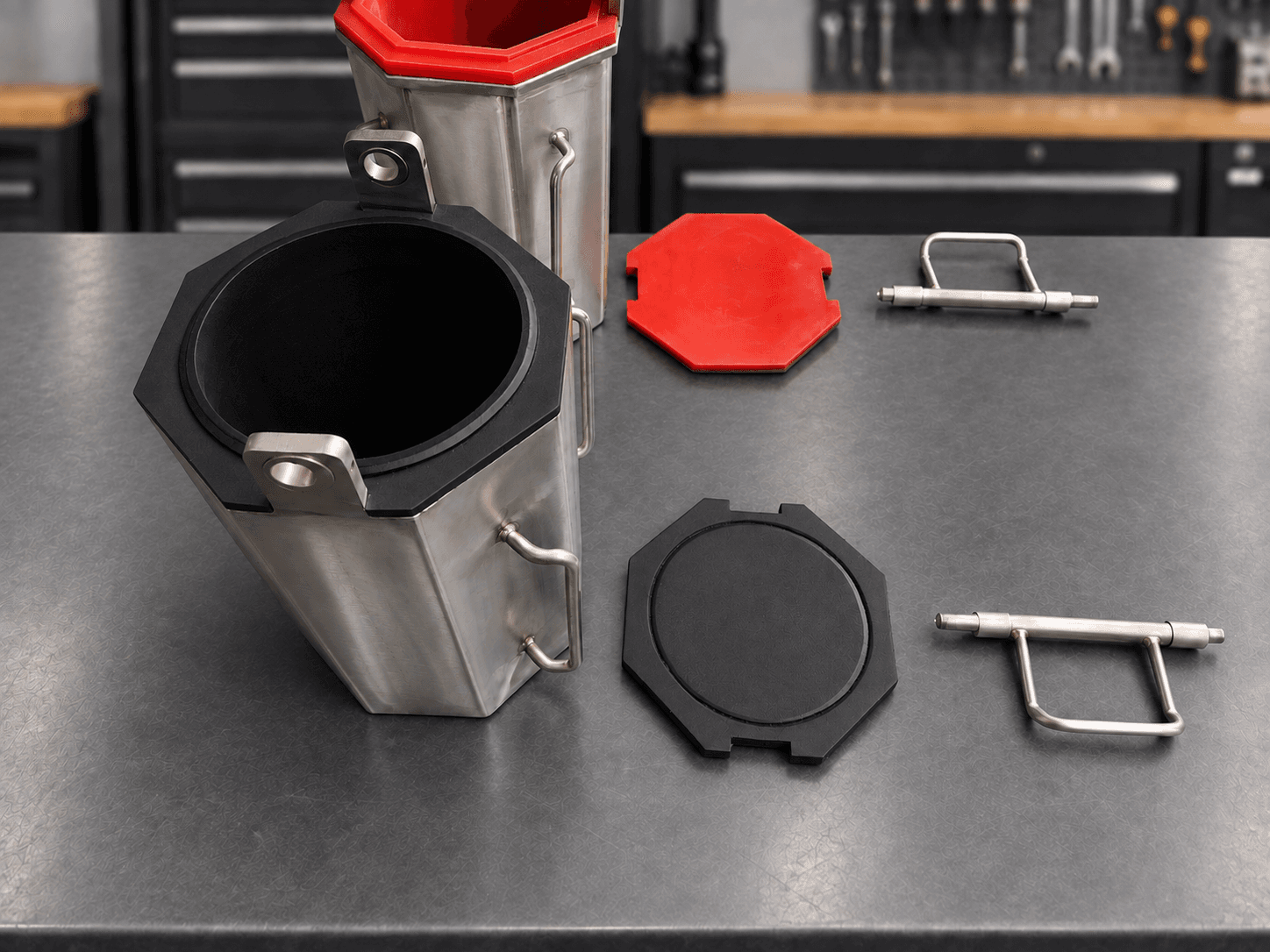

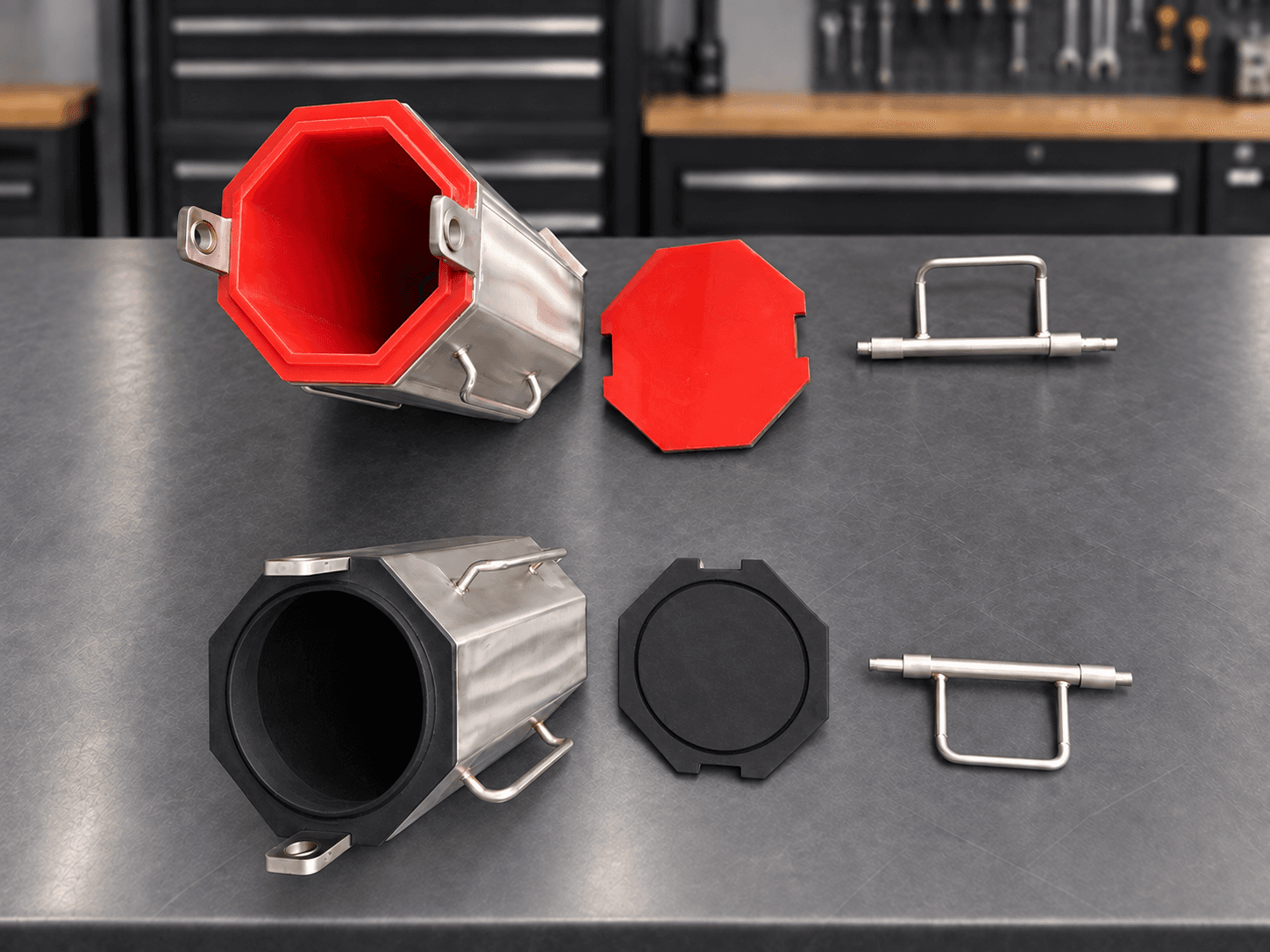

Compare the black rubber-lined barrel and red polyurethane-lined barrel shown here, with their lids and locking handles removed.
High-load transfer gears. Easy-access greasing.
Nylon molybdenum transfer gears
The black transfer gears are made of nylon molybdenum, designed to handle high loads and to shear in the event of a catastrophic failure.
Easy-access grease port system
The grease port system provides convenient access for routine greasing maintenance. The ports and connected orange grease lines are visible at the upper left of the photo.
Protective turret sealer coating
The turret assembly has a sealer coating to help protect it from debris and corrosion.
Built to run for years, not months.
The same gear-driven turret build goes into every Richwood machine.
Gear-driven turret
The critical, high-stress components are gear-driven, not chain or belt. Fewer wear parts, no slipping in greasy or humid shops, no chain slap, and steady power to every barrel.
Precision bearings
High-grade bearings carry the load at full G-force, run after run, so the machine holds its finish quality over a long service life.
Built to last
Quality components and tight fit and finish throughout. These machines are made to run hard and keep running.
CV8-600 at a glance.
Need the full spec sheet? Ask Kevin →
- Country of manufacture
- South Korea
- Media separation
- Optional RW-IND standalone separator, in stock: additional $12,500. Includes three screen sizes for Small, Medium, and Large media.
- Lid sealing
- Replaceable, adjustable eccentric collars control lid-to-barrel sealing pressure.
- Barrels
- 4 removable and interchangeable stainless steel barrels, 7.5 liters each
- Total capacity
- 30 liters (1.05 cu ft)
- Motion
- Figure-8 (the '8')
- Barrel lining
- Natural rubber, or replaceable polyurethane
- Barrel options
- Choose 1/4 cu ft barrels, 1/8 cu ft barrels, or mix and match both sizes. Both sizes are available with rubber or replaceable polyurethane lining. Four 1/4 cu ft or eight 1/8 cu ft barrels are example packages, not the only choices. Additional barrels: $500 each. Request your preferred mix with your quote.
- Barrel inside dimension
- 7.28 x 10.62 in
- Machine dimensions (Length x Width x Height)
- 39.37 x 37.79 x 47.24 in
- Chassis
- Stainless steel
- Power
- 220V three phase, 9 amps
- Main drive motor
- 3 HP
- Automation
- Integrated process timer and reverse turret drive
- Compressed air
- Not required
- Noise level
- 60 dB
- Standards
- NFPA-70 and NFPA-79
- Turret speed
- 0 to 210 RPM
2 CV8-600 units are on the floor right now.
Watch yours run on video before it ships.
