Serious throughput for mid-to-large batch deburring.
Made in South Korea. Stocked and supported in Los Angeles.
Best for mid-to-large batch deburring and finishing.
The RW-120 is the everyday production machine for shops that have outgrown the benchtop. A high-energy four-barrel-class unit that turns through mid-to-large batches and keeps the line moving. Four fixed 30 liter barrels, compartment dividers, and optional media separation. It runs on 220V three phase and needs compressed air on site.

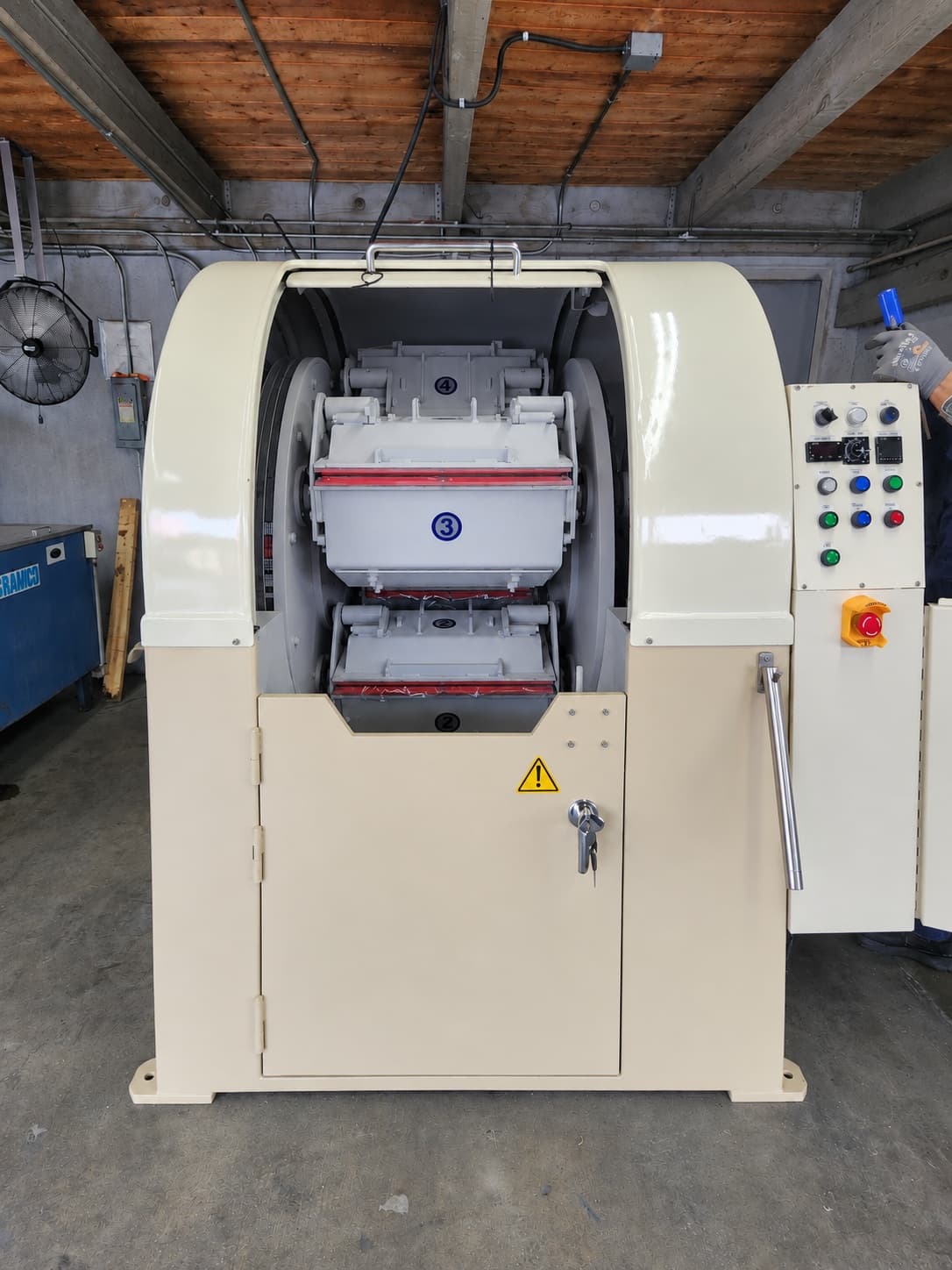

Low ceiling. Custom solution.
A low-profile RW-120 built around the customer’s space—not the other way around.
The challenge
A customer’s defense manufacturing plant required a finishing machine that could fit beneath an extremely low ceiling.
The custom build
Richwood supplied a custom low-profile RW-120 configuration to meet the site’s height constraints.
The finishing touch

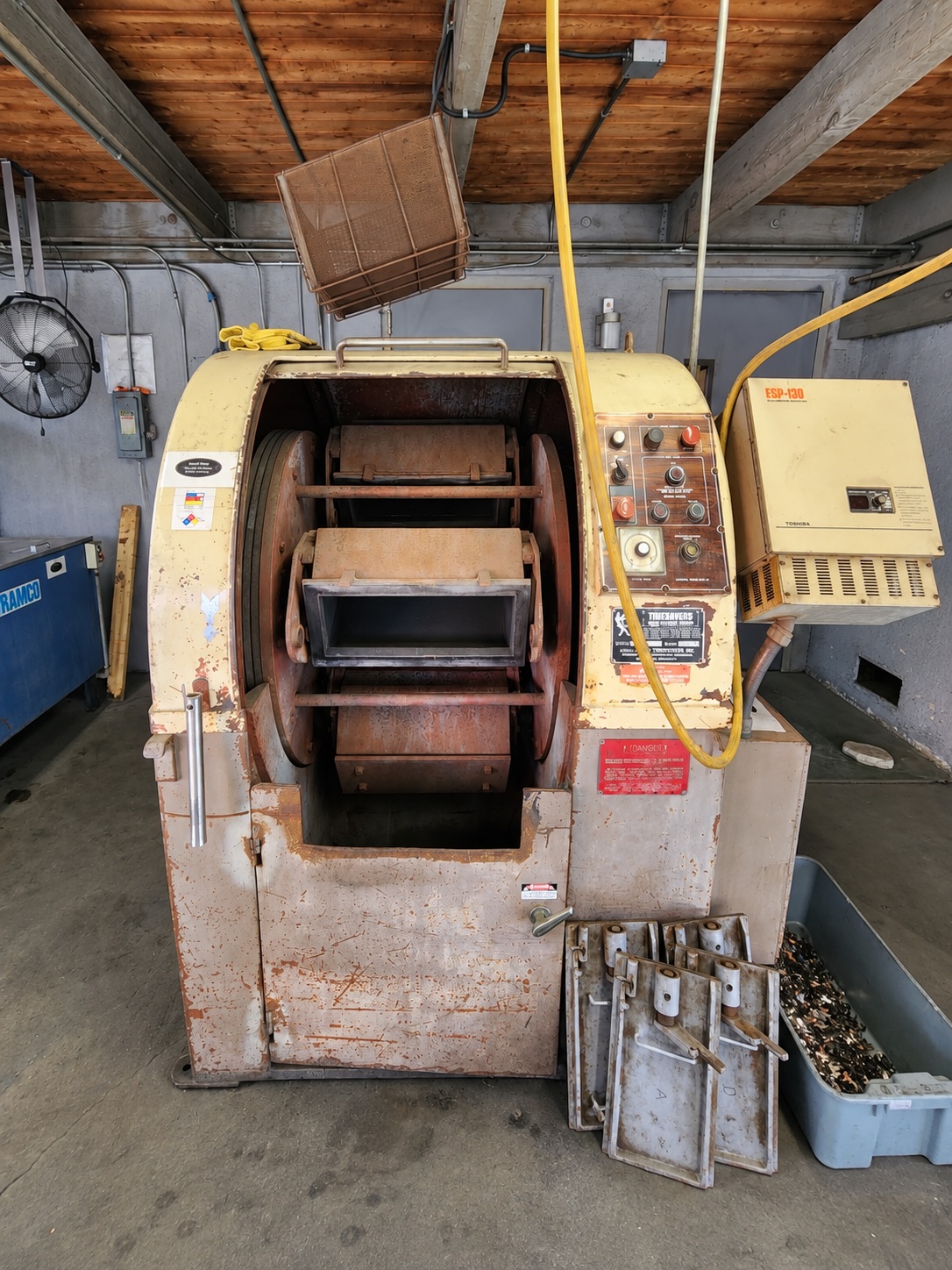

We matched the color to the customer’s original machine and delivered the custom RW-120 to their plant.
Have a low ceiling or a specific installation requirement? Tell Kevin about your space so we can discuss a configuration for your facility.
Discuss Your Custom Build →Customer-specific configuration shown. Discuss custom dimensions, pricing and lead time with Richwood.
Plug and Play separator
Add for $9,950
The optional Plug and Play separator fits into the opening on the lower-left side of your RW-120, as shown in the installation photo.
Includes three screen sizes for Small, Medium, and Large media. Priced separately from the machine.
Configure Your RW-120 →
High-load transfer gears. Easy-access greasing.
Nylon molybdenum transfer gears
The black transfer gears are made of nylon molybdenum, designed to handle high loads and to shear in the event of a catastrophic failure.
Easy-access grease port system
The grease port system provides convenient access for routine greasing maintenance. The ports and connected orange grease lines are visible at the upper left of the photo.
Protective turret sealer coating
The turret assembly has a sealer coating to help protect it from debris and corrosion.
Built to run for years, not months.
The same gear-driven turret build goes into every Richwood machine.
Gear-driven turret
The critical, high-stress components are gear-driven, not chain or belt. Fewer wear parts, no slipping in greasy or humid shops, no chain slap, and steady power to every barrel.
Precision bearings
High-grade bearings carry the load at full G-force, run after run, so the machine holds its finish quality over a long service life.
Built to last
Quality components and tight fit and finish throughout. These machines are made to run hard and keep running.
RW-120 at a glance.
Need the full spec sheet? Ask Kevin →
- Country of manufacture
- South Korea
- Lid sealing
- Replaceable, adjustable eccentric collars control lid-to-barrel sealing pressure.
- Barrels
- 4 fixed, 30 liters each
- Total capacity
- 120 liters (4.23 cu ft)
- Barrel inside dimension
- 10.55 x 17.00 in
- Compartment dividers
- Yes
- Media separation
- Optional Plug and Play separator: additional $9,950. Includes three screen sizes for Small, Medium, and Large media.
- Machine dimensions (Length x Width x Height)
- 97.63 x 56.69 x 115.74 in
- Power
- 220V three phase, 28 amps
- Main drive motor
- 7.5 HP
- Turret speed
- 150 RPM, fully adjustable
- Barrel speed
- 150 RPM
- Barrel forward and reverse
- Yes
- Compressed air
- Required
- Noise level
- 70 dB
- Standards
- NFPA-70 and NFPA-79
2 RW-120 units are on the floor right now.
Watch yours run on video before it ships.
