Maximum parts per shift. Four barrels, ready now.
Made in South Korea. Stocked and supported in Los Angeles.
Best for high-volume shops running the most parts per shift.
When you need maximum parts per shift, the RW-220 is the top of the line. Four barrels, a flip-up domed cover, and a separate control panel built to run back to back, all day. This is the machine that takes a full shift of hand deburring off your labor line.
Built to run for years, not months.
The same gear-driven turret build goes into every Richwood machine.

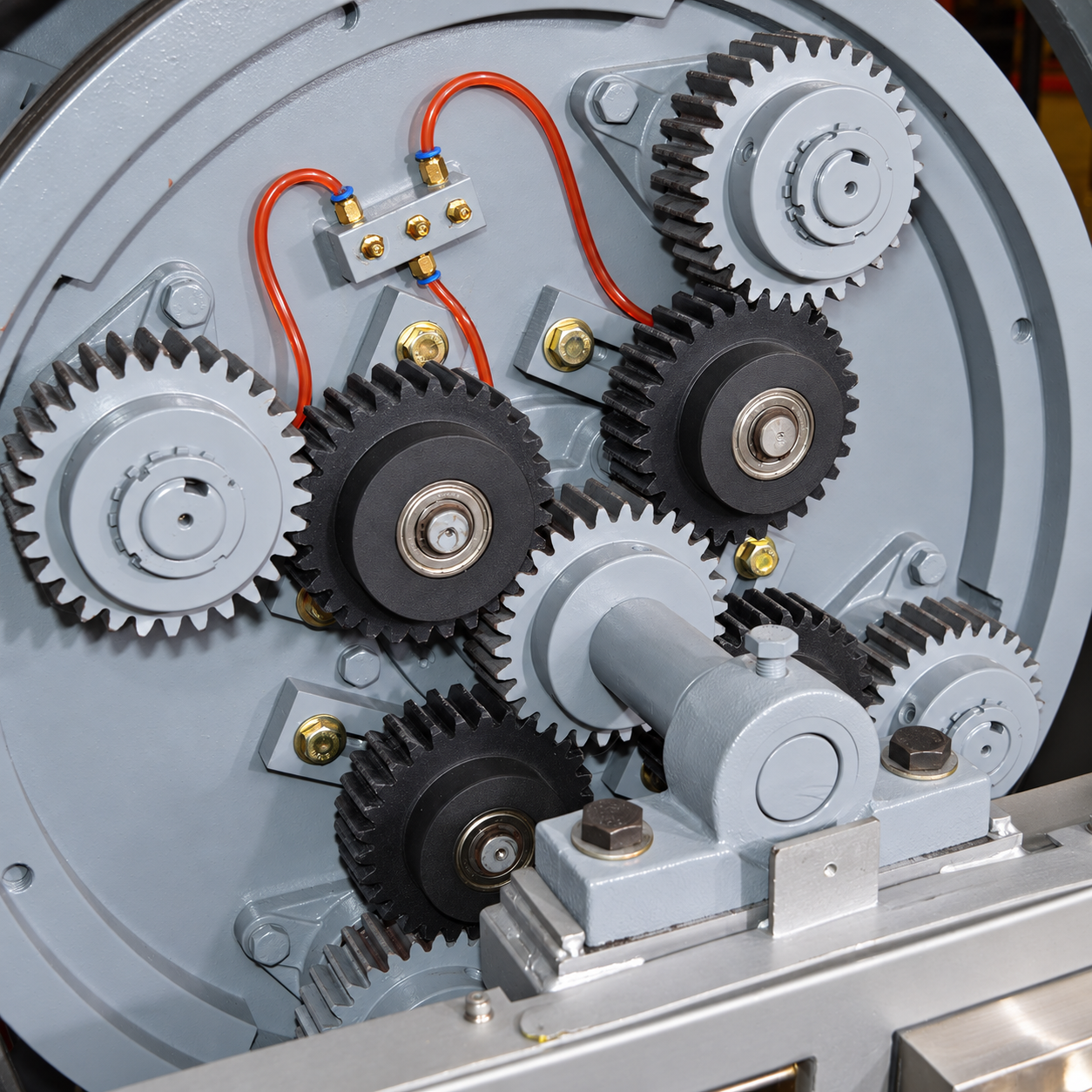

Gear-driven turret
The critical, high-stress components are gear-driven, not chain or belt. Fewer wear parts, no slipping in greasy or humid shops, no chain slap, and steady power to every barrel.
Precision bearings
High-grade bearings carry the load at full G-force, run after run, so the machine holds its finish quality over a long service life.
Built to last
Quality components and tight fit and finish throughout. These machines are made to run hard and keep running.
RW-220 at a glance.
Need the full spec sheet? Ask Kevin →
- Country of manufacture
- South Korea
- Lid sealing
- Replaceable, adjustable eccentric collars control lid-to-barrel sealing pressure.
- Barrels
- 4 fixed, 55 liters each
- Total capacity
- 220 liters (7.76 cu ft)
- Barrel inside dimension
- 11.61 x 27.44 in
- Compartment dividers
- Yes
- Media separation
- Optional
- Machine dimensions
- 108.26 x 59.44 x 121.25 in
- Power
- 460V three phase, 69 amps
- Main drive motor
- 20 HP
- Turret speed
- 150 RPM, fully adjustable
- Barrel speed
- 150 RPM
- Barrel forward and reverse
- Yes
- Compressed air
- Required
- Noise level
- 70 dB
- Cover
- Flip-up domed
- Controls
- Separate control panel
- Standards
- NFPA-70 and NFPA-79
2 RW-220 units are on the floor right now.
Watch yours run on video before it ships.
