XM and XA Tumbling Nuggets
$10.00 / lb
Volume pricing is reflected in your quote.
Randomly shaped ceramic tumbling nuggets in two families. XM is a coloring abrasive for burnishing ferrous metals, brass, and aluminum. XA is a fused aluminum oxide abrasive that cuts fast, wears long, and resists impact.
Randomly shaped ceramic tumbling nuggets in two families. XM is a coloring abrasive for burnishing ferrous metals, brass, and aluminum. XA is a fused aluminum oxide abrasive that cuts fast, wears long, and resists impact.

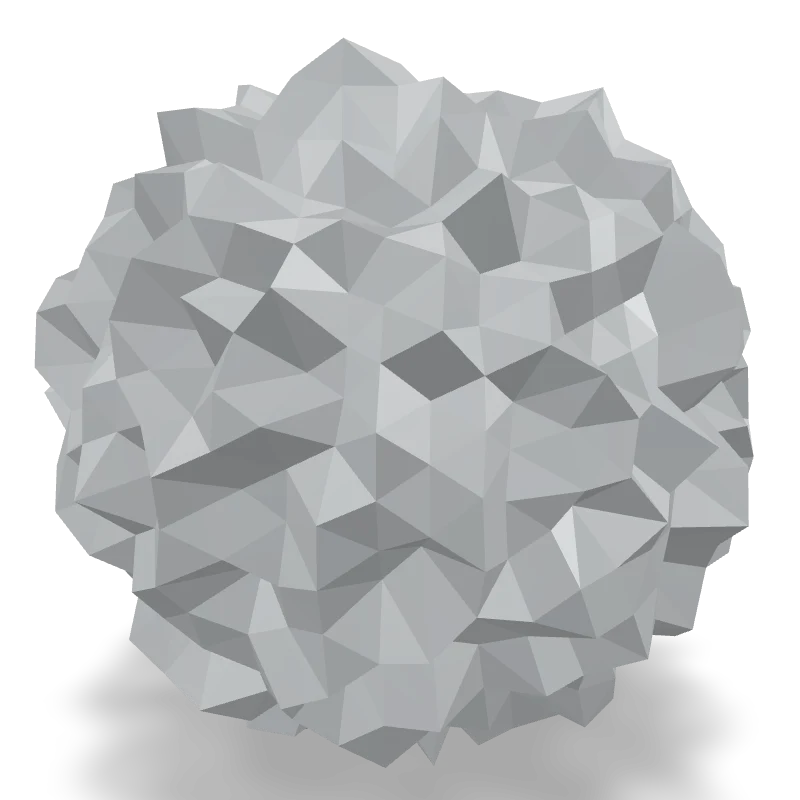

Shape
Drag to rotate.
Dimensions
Catalog dimensions for this shape. A, B, and C follow the shape drawing in the printed catalog.
| Order as | Screen sizing | XM | XA |
|---|---|---|---|
| 00 | 1-1/2 to 2 in | Yes | |
| 0 | 1-1/8 to 1-1/2 in | Yes | |
| 1 | 7/8 to 1-1/8 in | Yes | |
| 1-1/2 | 11/16 to 7/8 in | Yes | |
| 2 | 9/16 to 3/4 in | Yes | |
| 2-1/2 | 1/2 to 9/16 in | Yes | Yes |
| 3 | 3/8 to 1/2 in | Yes | Yes |
| 3-1/2 | 5/16 to 3/8 in | Yes | Yes |
| 4 | 7/32 to 5/16 in | Yes | Yes |
| 5 | 3/16 to 1/4 in | Yes | Yes |
| 6 | 1/8 to 3/16 in | Yes | Yes |
| 8 | 3/32 to 1/8 in | Yes | Yes |
| 10-36 | normal mesh sizing | Yes | Yes |
| 24-240 | normal mesh sizing | Yes |
Attributes
- Category
- XM and XA Tumbling Nuggets
- Archived variants
- 0
- Specification
- XM density 140 to 150 lb per cu ft
- Specification
- XA density 145 lb per cu ft
- Specification
- Sizes 00 through 8 plus 10-36 and 24-240 mesh grades
- Specification
- XM sizes 2-1/2 through 8 and 10-36; XA spans all sizes
- Current details
- Confirmed with Kevin on the quote
Variants
Add the exact row when you know it. If not, add the full product above and include your current code or dimensions in the request.
No variant rows were listed in the recovered catalog. Add the product and Kevin will confirm the current forms and specifications.
Best for
- Application and process match confirmed against the part
