Standard finishing media

Angle Cut Ellipse

Contact us about this media

Price varies by size. Stocked sizes below.

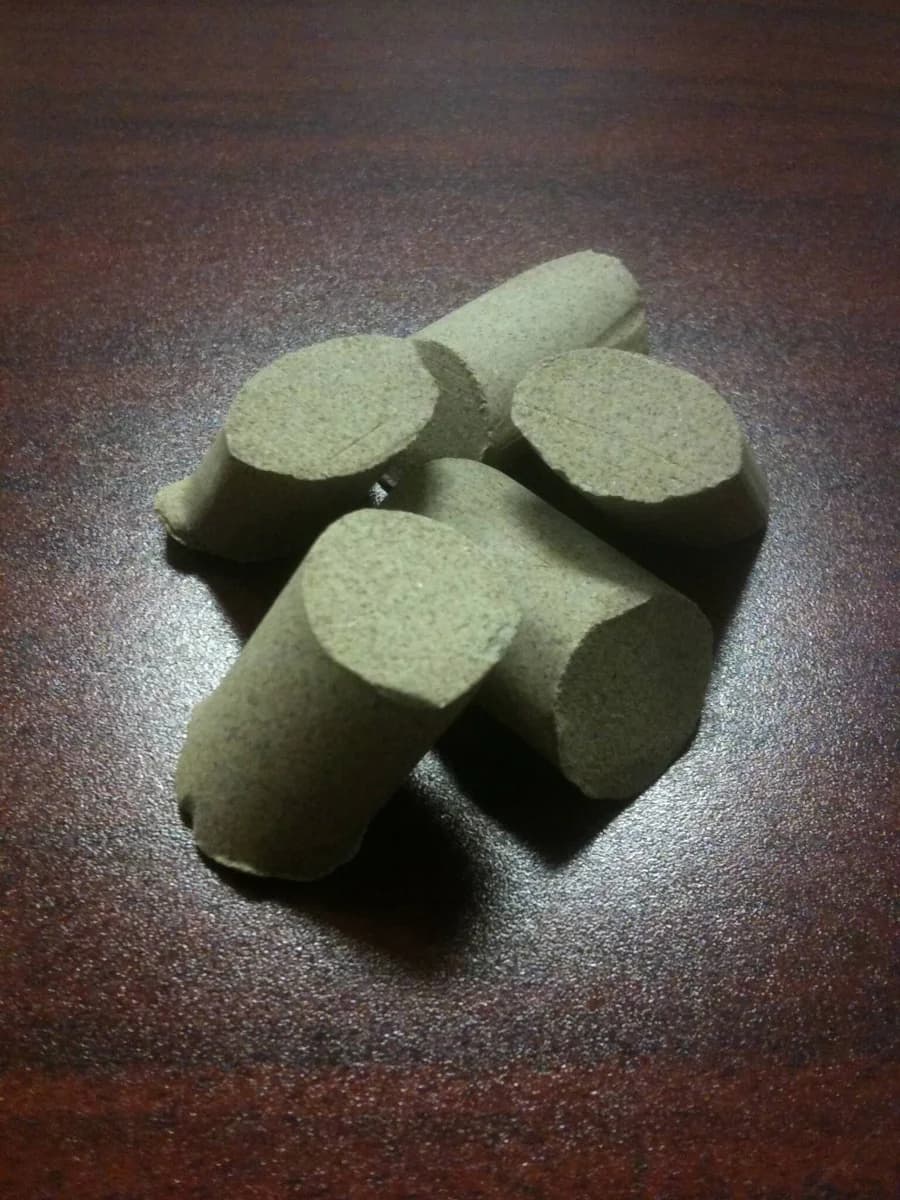

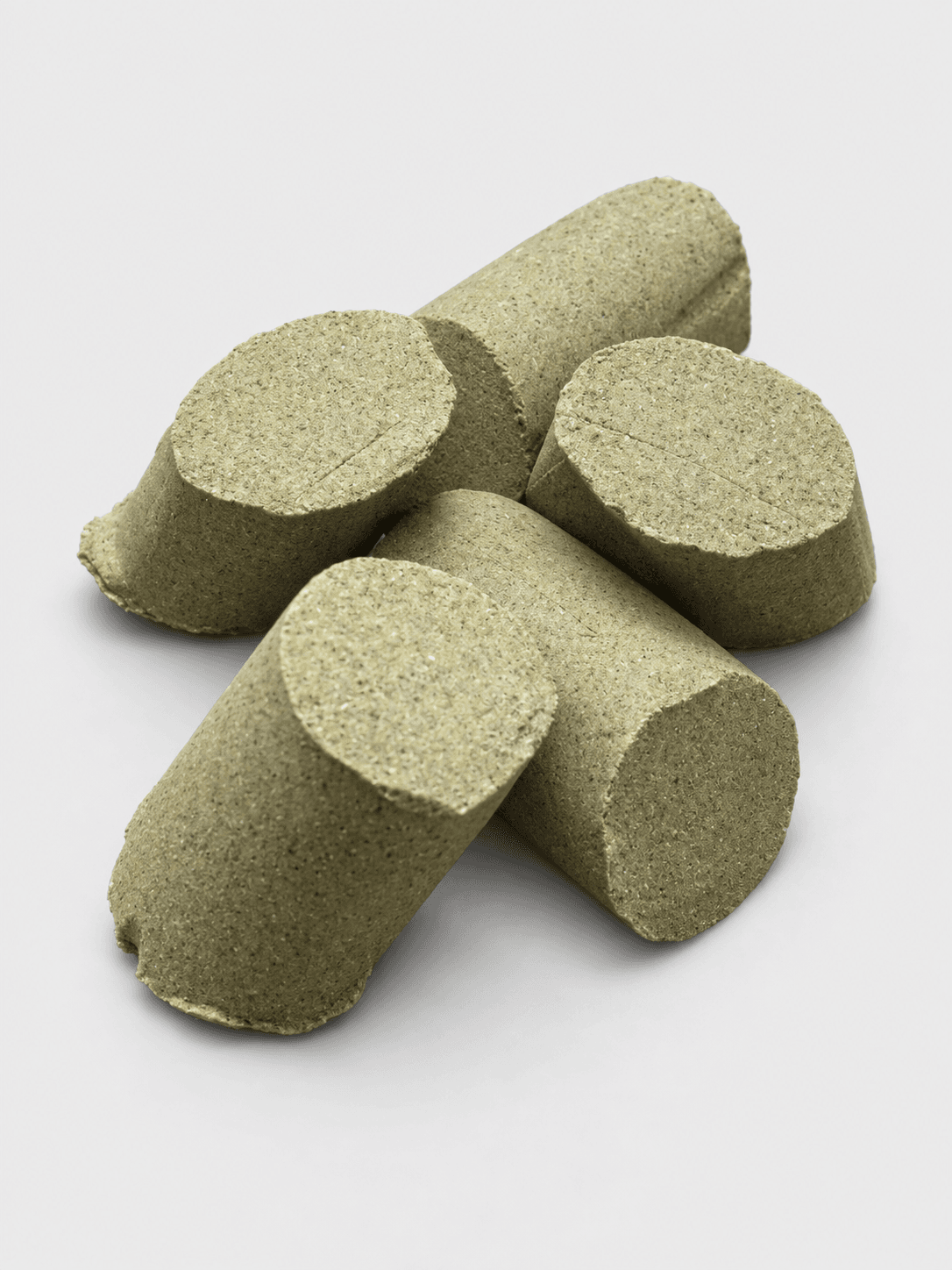

Elliptical ceramic media from the stocked line.

Angle cut ellipse media reaches into curved slots and blended radii where cylinders skate.

Choose the job, then the Vibra Finish code. View the simple composition chart →

Ceramic media

Angle Cut Ellipse

Angle Cut Ellipse ceramic finishing media — enhanced supplier photograph
Enhanced supplier photograph. Enhanced background; cropped edges reconstructed illustratively where needed. Shapes and colors vary by formulation; image is not to scale.

2026 West listed sizes (inches)

Only sizes from the 2026 West list are shown. Formulation codes identify standard combinations; listed nonstandard sizes require confirmation. Standard does not guarantee immediate stock. Select an available standard combination above to request a quote.

Angle Cut Ellipse — Ceramic
Size (inches)Formulations
3/8 x 5/8 x 5/8Listed nonstandard size — confirm formulation and availability
3/8 x 5/8 x 7/8Listed nonstandard size — confirm formulation and availability

Vibra Finish ceramic media reference. Size strings follow the supplier table; confirm the required dimensions and grade on your quote.

Reference dimensions · 3/8 x 5/8 x 5/8

Vibra Finish dimension reference drawing for ceramic angle cut ellipse; measurement letters follow the marked brackets
Vibra Finish reference drawing · enlarged vector redraw · not to scale. Supplier ellipse drawing shows a 22° cut. Open full-size drawing · Supplier reference

Catalog size below is listed separately. A/B/C on the supplier drawing identify its marked spans, not a universal width/length/depth order.

Catalog dimension 1
3/8 in / 9.53 mm
Catalog dimension 2
5/8 in / 15.88 mm
Catalog dimension 3
5/8 in / 15.88 mm

One size from the 2026 West list. Dimension order follows that list, not a universal A/B/C axis convention. Drawings are not to scale. What do A, B, and C mean? View the measuring guide.

Product data

Attributes

Category
Ceramic Media
Listed sizes
2
Shape use
Works curved slots and blended radii
Current details
Confirmed with Kevin on the quote
Process fit

Best for

  • Curved slots
  • Blended radii
